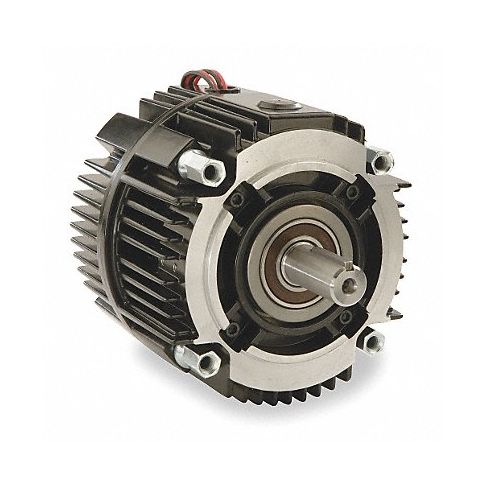

Clutch/Brake Torque 16 Ft-Lb 90 DC MPN:UM50-1020-90
Free Shipping
In Stock
Introducing Warner Electric's new Clutch/Brake Torque 16 Ft-Lb 90 DC module designed for high-performance load control in various applications. With a static torque rating of 16 ft-lb, this versatile product ensures smooth starting and stopping of motors with excellent holding capabilities. The vented enclosure provides protection from dust and moisture, while the shaft diameter of 5/8 inch allows for easy installation. Equipped with both a clutch and brake, this module can transfer motion from one component to another while efficiently controlling loads. Ideal for applications such as packaging equipment, material handling systems, conveyors, and textile machinery, the Clutch/Brake Torque 16 Ft-Lb 90 DC from Warner Electric delivers exceptional performance and reliability in harsh industrial environments. Upgrade your power transmission system today with this powerful and efficient solution from Warner Electric.
Top product features:
- High-performance starting and stopping of loads with a static torque rating of 16 ft-lb
- Ability to transfer motion from one component to another with both clutch and brake functionality
- Protection against dust and moisture with a vented enclosure
Top product applications:
- Packaging equipment
- Material handling systems
- Conveyors
Technical Specifications
- Item Clutch/Brake
- Static Torque (Ft.-Lb.) 16
- Shaft Dia. (In.) 5/8 in
- Enclosure Vented
- Voltage (DC) 90
- Max. RPM 3,600 RPM
- NEMA/IEC Frame 56C
- Power Lead Length (In.) 30
- Mounts On NEMA C-Face Motor or Between Motor and Reducer
- Finish Black Paint
- Brake Mouting Position Horizontal
- Length (In.) 6.75 in
- Width (In.) 6 3/4 in
- Series UM-50
- For Use With NEMA C-Face Motor/Reducer
- Agency Compliance UL/CSA
- Includes Mounting Hardware
Manufacturer Details
- Manufacturer: Warner Electric
- Condensed Mfg Number: UM50102090
- MPN: UM50-1020-90
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8505200000
- GDS Category Name: Brakes and Clutches
- GDS Family Name: Brakes and Clutches
- GDS Segment Name: Power Transmission
- UNSPSC: 26111909
- UNSPSC Class ID: 19
- UNSPSC Commodity Name: Clutches
- UNSPSC Commodity ID: 09
- UNSPSC Commodity Name: Electrical clutches
- UNSPSC Family ID: 11
- UNSPSC Family Name: Batteries and generators and kinetic power transmission
- UNSPSC Segment ID: 26
- UNSPSC Segment Name: Power Generation and Distribution Machinery and Accessories
Shipping Details
- Not For Sale In: HI AK PR
