Clutch/Brake Torque 16 Ft-Lb 24 DC MPN:UM50-1020-24
Free Shipping
In Stock

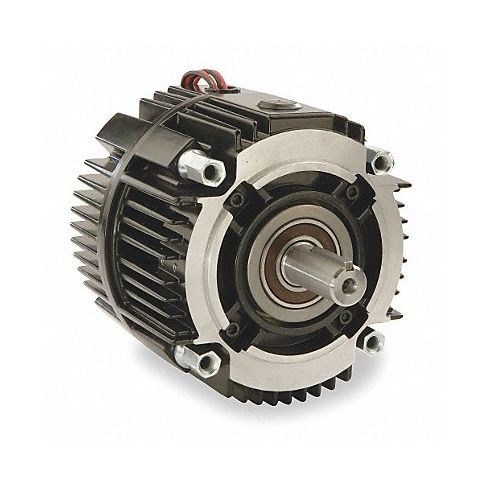

The Clutch/Brake Torque 16 Ft-Lb 24 DC from Warner Electric is a versatile and powerful device designed to provide exceptional torque performance for various applications. This USA-made product comes with a 16 foot-pound static torque, perfect for handling heavier loads and machines in industrial settings. The enclosed design provides protection from dust and moisture, while its 5/8 inch shaft diameter ensures compatibility with a wide range of machines. With a maximum RPM of 24, this clutch/brake can be relied on to deliver optimal torque output for any application, including textile, packaging, and conveyor equipment. Ideal for demanding work environments where efficiency and reliability are essential, the Clutch/Brake Torque 16 Ft-Lb 24 DC offers unmatched performance that can't be beat.
Top product features:
- Static Torque (Ft.-Lb.): 16
- Shaft Dia.: 5/8 in.
- Max. RPM: 24
Top product applications:
- Heavy Duty Machine Operation
- Packaging Equipment Control
- Textile Manufacturing Automation
Technical Specifications
- Item Clutch/Brake
- Static Torque (Ft.-Lb.) 16
- Shaft Dia. (In.) 5/8 in
- Enclosure Vented
- Voltage (DC) 24
- Max. RPM 3,600 RPM
- NEMA/IEC Frame 56C
- Power Lead Length (In.) 30
- Mounts On NEMA C-Face Motor or Between Motor and Reducer
- Finish Black Paint
- Brake Mouting Position Horizontal
- Length (In.) 6.75 in
- Width (In.) 6 3/4 in
- Series UM-50
- For Use With NEMA C-Face Motor/Reducer
- Agency Compliance UL/CSA
- Includes Mounting Hardware
Manufacturer Details
- Manufacturer: Warner Electric
- Condensed Mfg Number: UM50102024
- MPN: UM50-1020-24
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8505200000
- GDS Category Name: Brakes and Clutches
- GDS Family Name: Brakes and Clutches
- GDS Segment Name: Power Transmission
- UNSPSC: 26111909
- UNSPSC Class ID: 19
- UNSPSC Commodity Name: Clutches
- UNSPSC Commodity ID: 09
- UNSPSC Commodity Name: Electrical clutches
- UNSPSC Family ID: 11
- UNSPSC Family Name: Batteries and generators and kinetic power transmission
- UNSPSC Segment ID: 26
- UNSPSC Segment Name: Power Generation and Distribution Machinery and Accessories
Shipping Details
- Not For Sale In: HI AK PR
