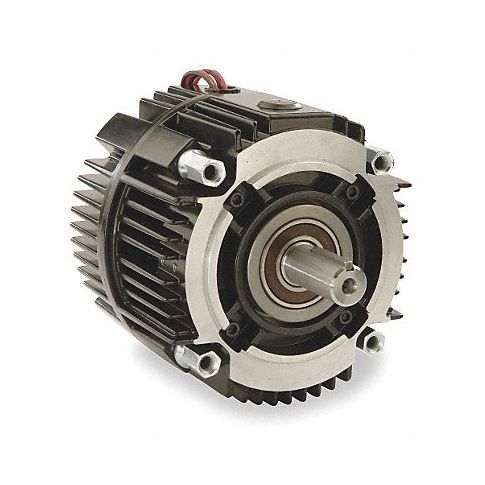

Clutch/Brake Torque 30 Ft-Lb 90 DC MPN:UM100-1020-90

This clutch and brake module offers high-performance starting and stopping of loads, with the motor running. The brake helps to inhibit motion, and the clutch helps to transfer motion from one component to another while engaged.

Technical Specifications

• Item Clutch/Brake
• Static Torque (Ft.-Lb.) 30
• Shaft Dia. (In.) 5/8 in
• Enclosure Vented
• Voltage (DC) 90
• Max. RPM 3,600 RPM
• NEMA/IEC Frame 56C
• Power Lead Length (In.) 30
• Mounts On NEMA C-Face Motor or Between Motor and Reducer
• Finish Black Paint
• Brake Mouting Position Horizontal
• Length (In.) 6.75 in
• Width (In.) 6 3/4 in
• Series UM-100
• For Use With NEMA C-Face Motor/Reducer
• Agency Compliance UL/CSA
• Includes Mounting Hardware

Manufacturer Details

• Manufacturer: Warner Electric
• Condensed Mfg Number: UM100102090
• MPN: UM100-1020-90

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8505200000
• GDS Category Name: Brakes and Clutches
• GDS Family Name: Brakes and Clutches
• GDS Segment Name: Power Transmission
• UNSPSC: 26111909
• UNSPSC Class ID: 19
• UNSPSC Commodity Name: Clutches
• UNSPSC Commodity ID: 09
• UNSPSC Commodity Name: Electrical clutches
• UNSPSC Family ID: 11
• UNSPSC Family Name: Batteries and generators and kinetic power transmission
• UNSPSC Segment ID: 26
• UNSPSC Segment Name: Power Generation and Distribution Machinery and Accessories

Shipping Details

• Not For Sale In: HI AK PR
