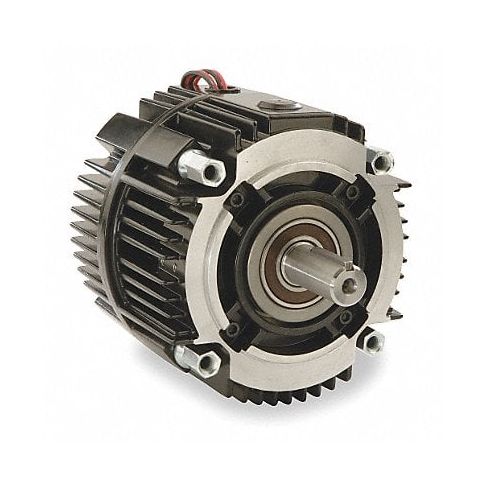

C-Face Clutch Torque 30 Ft-Lb 90 DC MPN:UM100-1040

Technical Specifications

• Item Clutch
• Type C-Face
• Static Torque (Ft.-Lb.) 30
• Shaft Dia. (In.) 5/8 in
• Enclosure Vented
• Voltage (DC) 90
• Max. RPM 3,600 RPM
• NEMA/IEC Frame 56C
• Power Lead Length (In.) 30
• Mounts On NEMA C-Face Motor or Between Motor and Reducer
• Finish Black Paint
• Brake Mouting Position Horizontal
• Length (In.) 6.75 in
• Width (In.) 6 3/4 in
• Series UM-100
• For Use With NEMA C-Face Motor/Reducer
• Agency Compliance UL/CSA
• Includes Mounting Hardware

Manufacturer Details

• Manufacturer: Warner Electric
• Condensed Mfg Number: UM1001040
• MPN: UM100-1040

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8505200000
• GDS Category Name: Brakes and Clutches
• GDS Family Name: Brakes and Clutches
• GDS Segment Name: Power Transmission
• UNSPSC: 26111909
• UNSPSC Class ID: 19
• UNSPSC Commodity Name: Clutches
• UNSPSC Commodity ID: 09
• UNSPSC Commodity Name: Electrical clutches
• UNSPSC Family ID: 11
• UNSPSC Family Name: Batteries and generators and kinetic power transmission
• UNSPSC Segment ID: 26
• UNSPSC Segment Name: Power Generation and Distribution Machinery and Accessories

Shipping Details

• Not For Sale In: HI AK PR
