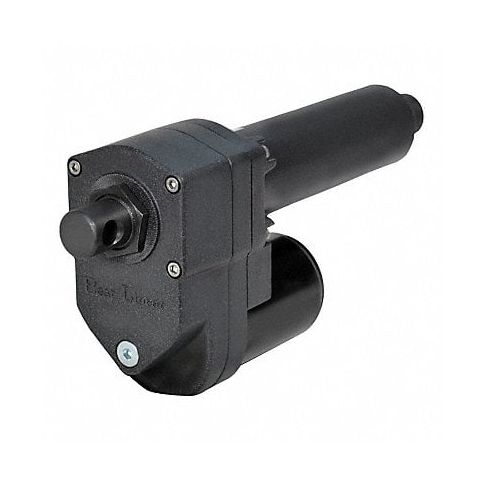

Linear Actuator 12VDC 1200 lb 8 In MPN:K2G20-12V-BR-08
Free Shipping
In Stock
Warner Linear's K2G20-12V-BR-08 linear actuator is an excellent choice for your industrial automation projects requiring precise positioning of up to 1,200 lb loads. With a 8 stroke length, this 12V DC actuator operates at 30 in/min speed and has a 50% duty cycle, making it ideal for various applications such as lifting, pushing, or pulling machinery. The linear actuator features made-in-USA craftsmanship and is sold by a Veteran-Owned Business, ensuring quality and reliability. Equipped with an extended warranty period, this product offers incredible value for money, giving you peace of mind on your investment. Built to last, the K2G20-12V-BR-08 linear actuator will improve efficiency in your operation, making it a valuable addition to your machinery.
Top product features:
- Made in the USA Supports domestic job growth and quality control
- Stroke Length Eight inches to accommodate various length requirements
- Voltage Rating High-quality parts that meet industry standards for power consumption and durability
Top product applications:
- Automotive Industry Lift and lower vehicle parts for maintenance
- Machinery Movement Control positioning of large equipment in factories
- Agriculture Equipment Operate mechanized farm implements with precision
Technical Specifications
- Item Linear Actuator
- Rated Load 1,200 lb
- Stroke Length 8 in
- Speed @ Rated Load 30 in/min
- Duty Cycle 50 %
- Voltage 12V DC
- Full Load Amps 25 A
- Retracted Length 14 1/4 in
- Max. Ambient Temp. 60 Degrees C/140 Degrees F
- Enclosure Type Totally Enclosed Non Ventilated
- Motor Type Permanent Magnet
- Thermal Protection Automatic
- Capacitor Included No
- Capacitor Required No
- Feedback Signal No
- Clutch Included Yes
- Drive System Type Gear
- Gear Material Aluminum
- Bearing Type Double Ended Ball
- Screw Type Acme
- Nut Material Bronze
- Seal Guide Material Delrin
- Housing Material Aluminum
- Finish Powder Coated
- Gear Case Type Parallel Spur
- Mounting Type Clevis
- Standards CE Compliant
Manufacturer Details
- Manufacturer: Warner Linear
- Condensed Mfg Number: K2G2012VBR08
- MPN: K2G20-12V-BR-08
Label Details
- Hazardous Material: Y
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8501314000
- GDS Category Name: Linear Actuators
- GDS Family Name: Linear Motion
- GDS Segment Name: Power Transmission
- UNSPSC: 31251511
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Actuators
- UNSPSC Commodity ID: 11
- UNSPSC Commodity Name: Linear actuators
- UNSPSC Family ID: 25
- UNSPSC Family Name: Pneumatic and hydraulic and electric control systems
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
