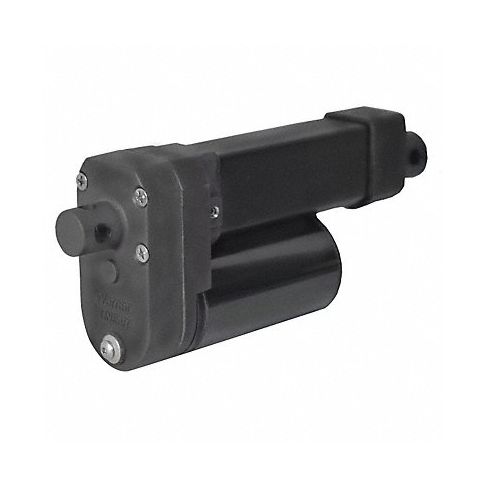

Linear Actuator 24VDC 100 lb 6 In MPN:M1-D024-0100-A06-LN

Technical Specifications

• Item Linear Actuator
• Rated Load 100 lb
• Stroke Length 6 in
• Speed @ Rated Load 30 in/min
• Duty Cycle 50 %
• Voltage 24V DC
• Full Load Amps 2.3 A
• Retracted Length 10 1/4 in
• Max. Ambient Temp. 65 Degrees C/150 Degrees F
• Enclosure Type Totally Enclosed Non Ventilated
• Motor Type Permanent Magnet
• Thermal Protection Automatic
• Capacitor Included No
• Capacitor Required No
• Feedback Signal No
• Limit Switch Type Fixed
• Clutch Included No
• Drive System Type Gear
• Bearing Type Dual Quad Ring
• Screw Type Acme
• Nut Material Delrin
• Seal Guide Material Delrin
• Housing Material Aluminum
• Finish Anodized
• Gear Case Type Parallel Spur
• Mounting Type Clevis
• Standards CE Compliant

Manufacturer Details

• Manufacturer: Warner Linear
• Condensed Mfg Number: M1D0240100A06LN
• MPN: M1-D024-0100-A06-LN

Label Details

• Hazardous Material: Y
• Green Material Flag: N
• Country of Origin: CN
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8501314000
• GDS Category Name: Linear Actuators
• GDS Family Name: Linear Motion
• GDS Segment Name: Power Transmission
• UNSPSC: 31251511
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Actuators
• UNSPSC Commodity ID: 11
• UNSPSC Commodity Name: Linear actuators
• UNSPSC Family ID: 25
• UNSPSC Family Name: Pneumatic and hydraulic and electric control systems
• UNSPSC Segment ID: 31
• UNSPSC Segment Name: Manufacturing Components and Supplies

Shipping Details

• Not For Sale In: HI AK PR
