Threading Insert: NTK3R TN6025, Carbide MPN:3607827
Threading Insert: NTK3R TN6025, Carbide MPN:3607827 is available to buy in increments of 1

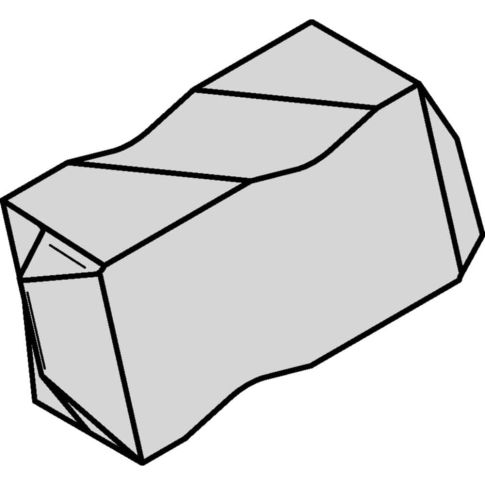

Threading Insert: NTK3R TN6025, Carbide
Threading Insert: NTK3R TN6025, Carbide AlTiN Finish, 0.60-2.50, Series NTK
Product Information
- : 3607827
- Ansi Code: NTK3R
- Chipbreaker: POSITIVE
- Coating Classification: PVD
- Coating Process: PVD
- Coolant Through: No
- Corner Radius (Decimal Inch): 0.0030
- External Pitch: 0.60-2.50
- Finish Coating: AlTiN
- Hole Diameter (Mm) ( - 0 Decimals): 0.0000
- Included Angle: 60.00
- Insert Hand: Right Hand
- Insert Holding Method: Clamp
- Insert Material: Carbide
- Insert Size: 3
- Insert Style: NTK
- Internal Pitch: 1.0-2.5
- Iso Code: NTK3R
- Manufacturer Grade: TN6025
- Material Grade: TN6025
- Maximum Corner Radius (Decimal Inch): 0.0030
- Maximum Depth of Cut (Decimal Inch): 0.1689
- Series: NTK
- Shape: Irregular
- Thickness (Decimal Inch - 4 Decimals): 0.3440
- Thread Standard: UN
- Thread Type: Internal & External
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Country of Origin: Coo Data Unavail
- TAA Compliant: No
- UNSPSC: 23291804
- CA Restricted (Prop 65): Unknown
- Package Weight: 0.02
- Prohibited States: AK,HI,PR
Product info last updated on October 1, 2024 1:05am UTC
Category: Threading and Thread Mill Inserts
