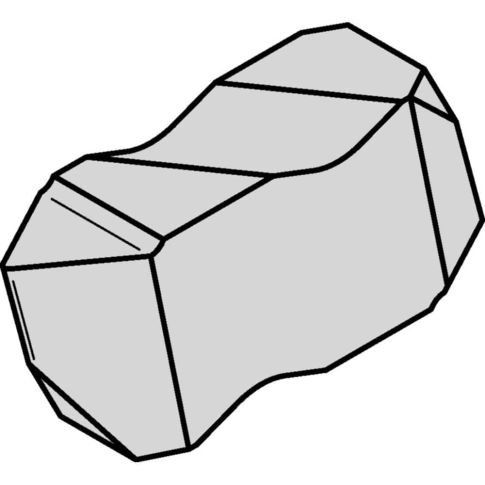

Threading Insert: NTP3L TN6025, Carbide MPN:3607831
Threading Insert: NTP3L TN6025, Carbide MPN:3607831 is available to buy in increments of 5
Threading Insert: NTP3L TN6025, Carbide
Threading Insert: NTP3L TN6025, Carbide AlTiN Finish, 1.25-4.0, Series NTP
Product Information
- : 3607831
- Ansi Code: NTP3L
- Chipbreaker: POSITIVE
- Coating Classification: PVD
- Coating Process: PVD
- Coolant Through: No
- Corner Radius (Decimal Inch): 0.0065
- External Pitch: 1.25-4.0
- Finish Coating: AlTiN
- Hole Diameter (Mm) ( - 0 Decimals): 0.0000
- Included Angle: 60.00
- Insert Hand: Left Hand
- Insert Holding Method: Clamp
- Insert Material: Carbide
- Insert Size: 3
- Insert Style: NTP
- Internal Pitch: 2.0-5.0
- Iso Code: NTP3L
- Manufacturer Grade: TN6025
- Material Grade: TN6025
- Maximum Corner Radius (Decimal Inch): 0.0065
- Maximum Depth of Cut (Decimal Inch): 0.1689
- Series: NTP
- Shape: Irregular
- Thickness (Decimal Inch - 4 Decimals): 0.3440
- Thread Standard: UN
- Thread Type: Internal & External
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Material Safety Data Sheet (MSDS) Required: No
- Country of Origin: Coo Data Unavail
- TAA Compliant: No
- UNSPSC: 23291804
- CA Restricted (Prop 65): Unknown
- Package Weight: 0.02
- Prohibited States: AK,HI,PR
Product info last updated on October 1, 2024 1:46am UTC
Category: Threading and Thread Mill Inserts
