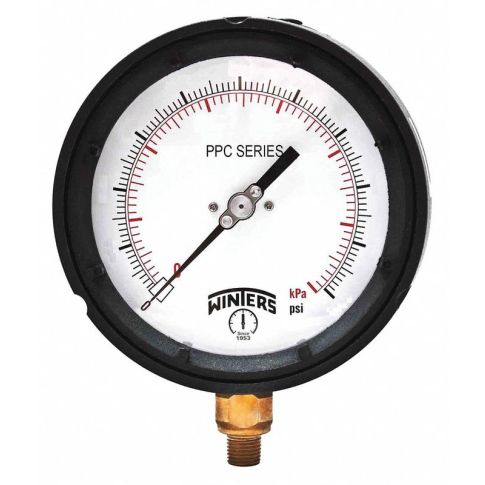

Gauge 4-1/2 Dial Size MNPT Connection MPN:PPC5080WBW
The Gauge 4-1/2 Dial Size MNPT Connection is a versatile pressure measurement tool ideal for various industries, including hydraulics, pneumatics, chemicals, automotive, manufacturing, oil & gas, and research labs. Its customizable options for pressure range and connections to various pipes and fittings ensure reliable performance in high-pressure environments. The durable construction, large dial size, and secure Male National Pipe Thread (NPT) connection make it a must-have tool for professionals who require precise pressure measurements. Its key specifications include customizable options for pressure range, connections to various pipes and fittings, and secure Male NPT connection. With its wide range of applications, the Gauge 4-1/2 Dial Size MNPT Connection is an essential tool for professionals in various industries who require precise pressure measurements.
Technical Specifications
- Item Vacuum Gauge
- Gauge Application Process
- Gauge Nominal Dial Size 4 1/2 in
- Basic Gauge Case Material Plastic
- Basic Gauge Wetted Parts Brass
- Gauge Connection Type MNPT
- Gauge Connection Size 1/4 in
- Gauge Connection Location Bottom
- Gauge Primary Range Values -30 to 0
- Gauge Accuracy +/-0.50%
- Pressure and Vacuum Gauge Type Vacuum Gauge
- Gauge Panel Mountable No
- Liquid Filled No
- Gauge Case Material Phenolic
- Gauge Case Color Black
- Basic Gauge Socket Material Brass
- Gauge Socket Material Brass
- Basic Gauge Sensor Material Brass
- Gauge Sensor Material Brass
- Gauge Lens Material Polycarbonate
- Basic Gauge Lens Material Plastic
- Operating Temp. Range -40 Degrees to 250 Degrees F
- Gauge Special Options IP65 Protection Rating
- Characteristics Field Liquid Fillable, Micrometer Adjustable Pointer, Under/Overload Stops
- For Use With Chemical, Petroleum and Power Industries, Non-Clogging Corrosive Media
- Calibration Certificate Included No
- Series PPC
- Includes Micrometer Adjustable Pointer, Reflective White Dial, Solid Front Case
- Manufacturers Warranty Length 5 yr
Manufacturer Details
- Manufacturer: Winters
- Condensed Mfg Number: PPC5080WBW
- MPN: PPC5080WBW
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: Y
- CA Prop 65 Warning Msg Scenario: 7
Classification Details
- Harmonization Code: 9026208000
- GDS Category Name: Commercial Industrial and Process Dial Pressure G
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 41112406
- UNSPSC Class ID: 24
- UNSPSC Commodity Name: Pressure measuring and control instruments
- UNSPSC Commodity ID: 06
- UNSPSC Commodity Name: Vacuum gauges
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
