Worldwide Electric CALM50-20/1-56C Aluminum Worm Gear Reducer 50mm 201 56C NEMA Frame CALM50-20/1-56C
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-42130B17
Worldwide Electric CALM50-20/1-56C Aluminum Worm Gear Reducer, 50mm, 20:1, 56C NEMA Frame CALM50-20/1-56C
This item is NOT returnable.

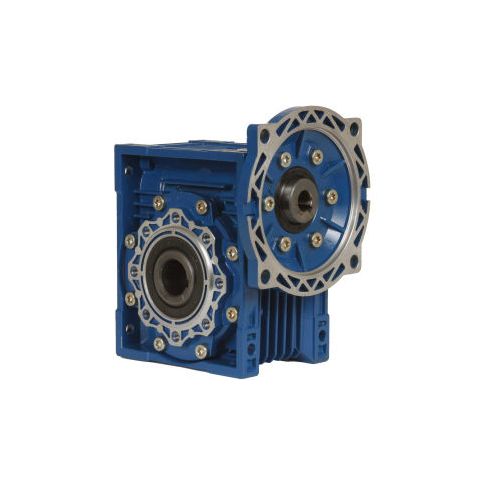

Worldwide Electric CALM50-20/1-56C Aluminum Worm Gear Reducer, 50mm, 20:1, 56C NEMA Frame
Aluminum Worm Gear Reducers are available in box sizes 30 - 90mm in ratio's from 7.5:1 to 100:1. The units have an aluminum alloy housing, NEMA motor input flanges, come pre-filled with synthetic oil and have a 1 year warranty. Special features include two bearings on the input and output shafts, double lip oil seals, epoxy paint for rust prevention, and hollow output bores with plug-in output shafts.
Aluminum Worm Gear Reducers are available in box sizes 30 - 90mm in ratio's from 7.5:1 to 100:1. The units have an aluminum alloy housing, NEMA motor input flanges, come pre-filled with synthetic oil and have a 1 year warranty. Special features include two bearings on the input and output shafts, double lip oil seals, epoxy paint for rust prevention, and hollow output bores with plug-in output shafts.
Product Specifications
- OUTPUT SPEED (RPM)88
- OVERHUNG LOAD LBS.510
- EFFICIENCY78
- NEMA FRAME56C
- BORE TYPEHollow Bore
- BRANDWorldWide Electric Corporation
- MANUFACTURERS PART NUMBERCALM50-20/1-56C
- MAX TORQUE (IN-LBS.)646
- MAX INPUT HP1.13
- OUTPUT DIAMETER INCHES1
- GEAR RATIO20:1
- BOX SIZE50
- WCD CENTER MM50
Additional Information
- UNSPSC: 26111537
- Brand: Worldwide Electric Corporation
- Package Quantity: 1
- Country of Origin: TW
- FOB Origin: NY
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: Yes
- Package Length: 10.00
- Package Width: 9.00
- Package Height: 9.00
- Package Weight: 8.00
Product info last updated on September 23, 2024 2:48pm UTC
Category: Gearboxes and Speed Reducers
