Worldwide HdRF175-15/1-H-56C Cast Iron Right Angle Worm Gear Reducer 151 Ratio 56C Frame HdRF175-15/1-H-56C

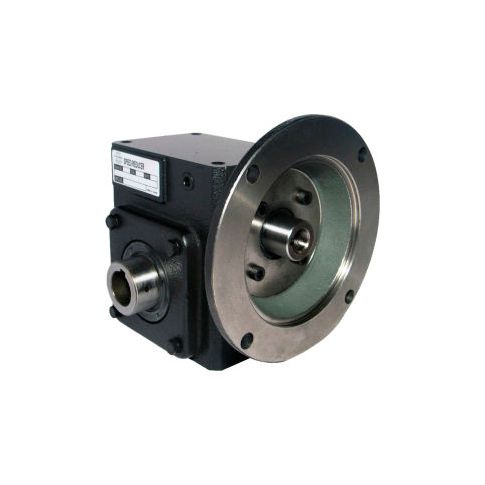

Worldwide HdRF175-15/1-H-56C Cast Iron Right Angle Worm Gear Reducer 15:1 Ratio 56C Frame
Cast Iron Worm Gear Reducers are available in center distances 1.33 - 3.25 inches in ratio's from 5:1 to 60:1. The units have a one piece #Fc20 all cast iron housing, NEMA motor quill style input flanges or shaft inputs, come pre-filled with synthetic oil and have a 1 year warranty.
Features:
Cast Iron Worm Gear Reducers are available in center distances 1.33 - 3.25 inches in ratio's from 5:1 to 60:1. The units have a one piece #Fc20 all cast iron housing, NEMA motor quill style input flanges or shaft inputs, come pre-filled with synthetic oil and have a 1 year warranty.
Features:
- Tapered roller bearings on the input and output shafts
- Embedded double-lip oil seals
- Anti-rust primer applied inside and outside of the gearbox
- Air dry special black paint
Product Specifications
- OUTPUT SPEED (RPM)120
- OVERHUNG LOAD LBS.650
- EFFICIENCY85
- NEMA FRAME56C
- BRANDWorldWide Electric Corporation
- CROSS REFERENCEBoston HF718; Grove HMQ218
- MANUFACTURERS PART NUMBERHdRF175-15/1-H-56C
- DESCRIPTIONCast Iron Right Ange Worm Gear Reducer
- BACKLASH (FT.) (ANGULAR MINUTES)20
- OUTPUT SHAFT THRUST LOAD (LBS.)550
- MAX INPUT HP1.24
- MAX TORQUE (IN-LBS.)554
- WCD CENTER INCHES1.75
- GEAR RATIO15:1
Additional Information
- UNSPSC: 26111537
- Brand: Worldwide Electric Corporation
- Package Quantity: 1
- Country of Origin: TW
- FOB Origin: NY
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: Yes
- Package Length: 10.00
- Package Width: 9.00
- Package Height: 9.00
- Package Weight: 28.00
