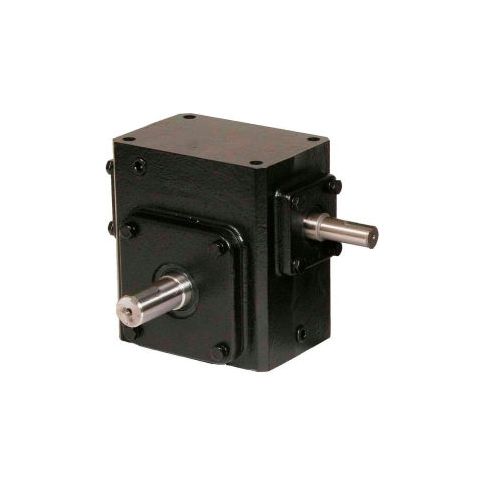

Worldwide HdRS206-20/1-L Cast Iron Right Angle Worm Gear Reducer 201 Ratio HdRS206-20/1-L
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-56529B18
Worldwide HdRS206-20/1-L Cast Iron Right Angle Worm Gear Reducer 201 Ratio HdRS206-20/1-L
Worldwide HdRS206-20/1-L Cast Iron Right Angle Worm Gear Reducer 20:1 Ratio
Cast Iron Worm Gear Reducers are available in center distances 1.33 - 3.25 inches in ratio's from 5:1 to 60:1. The units have a one piece #Fc20 all cast iron housing, NEMA motor quill style input flanges or shaft inputs, come pre-filled with synthetic oil and have a 1 year warranty.
Features:
Cast Iron Worm Gear Reducers are available in center distances 1.33 - 3.25 inches in ratio's from 5:1 to 60:1. The units have a one piece #Fc20 all cast iron housing, NEMA motor quill style input flanges or shaft inputs, come pre-filled with synthetic oil and have a 1 year warranty.
Features:
- Tapered roller bearings on the input and output shafts
- Embedded double-lip oil seals
- Anti-rust primer applied inside and outside of the gearbox
- Air dry special black paint
Product Specifications
- OUTPUT SPEED (RPM)88
- OVERHUNG LOAD LBS.700
- EFFICIENCY82
- BRANDWorldWide Electric Corporation
- CROSS REFERENCEBoston 721; Grove B220
- MANUFACTURERS PART NUMBERHdRS206-20/1-L
- BACKLASH (FT.) (ANGULAR MINUTES)17
- DESCRIPTIONCast Iron Right Ange Worm Gear Reducer
- OUTPUT SHAFT THRUST LOAD (LBS.)750
- MAX INPUT HP1.57
- MAX TORQUE (IN-LBS.)914
- WCD CENTER INCHES2.06
- GEAR RATIO20:1
Additional Information
- UNSPSC: 26111537
- Brand: Worldwide Electric Corporation
- Package Quantity: 1
- Country of Origin: TW
- FOB Origin: NY
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: Yes
- Package Length: 10.00
- Package Width: 10.00
- Package Height: 9.00
- Package Weight: 33.00
Product info last updated on September 23, 2024 2:48pm UTC
Category: Gearboxes and Speed Reducers
