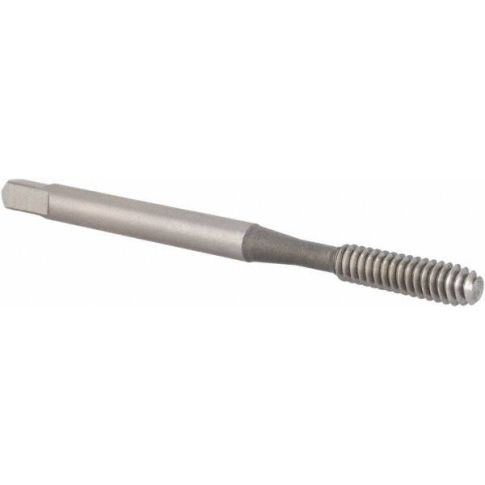

Thread Forming Tap: #6-32 UNC, Bottoming, Vanadium High Speed Steel, Bright Finish MPN:Z2243
Thread Forming Tap: #6-32 UNC, Bottoming, Vanadium High Speed Steel, Bright Finish
Thread Forming Tap: #6-32 UNC, Bottoming, Vanadium High Speed Steel, Bright Finish H3
Product Information
- : Z2243
- Application: Blind Hole Threading
- Chamfer: Bottoming
- Chamfered Threads: 1.5-2P
- Class of Fit: 2B
- Coating/Finish: Bright/Uncoated
- Coolant Through: No
- Flute By Diameter Ratio: 3xD
- Material: High-Speed Steel-E-V3
- Oil Grooves: 4
- Overall Length (Decimal Inch): 2.0000
- Series: Z2
- Shank Diameter (Decimal Inch): 0.1410
- Square Size (Decimal Inch): 0.1100
- Tapping Depth (Decimal Inch): 0.6900
- Thread Direction: Right Hand
- Thread Length (Decimal Inch): 0.4800
- Thread Limit: H3
- Thread Size (Inch): #6-32
- Thread Standard: UNC
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Country of Origin: KR, Republic of South Korea
- TAA Compliant: Yes
- UNSPSC: 23241600
- CA Restricted (Prop 65): Unknown
- Package Weight: 0.12
- Prohibited States: AK,HI,PR
Related ASINs: B00F8ZOQFC, B00F8ZOOUE, B00F8PWU4Q
Product info last updated on December 2, 2024 3:48pm UTC Category: Thread Forming Taps
